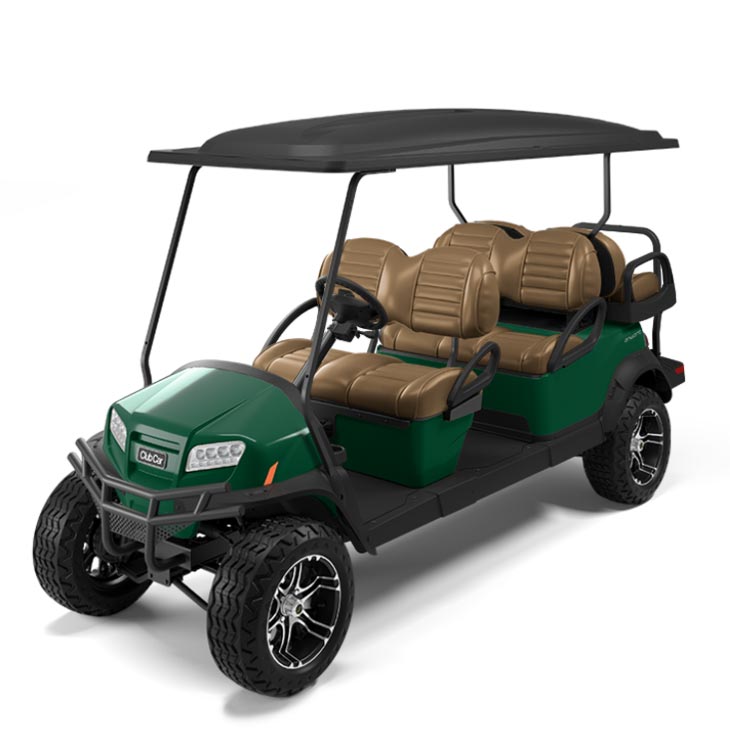

Onward 6 Passenger – Lifted – Pirate Island Carts

ONWARD 6 PASSENGER - lifted

18 mph • 6 seats • 14g / 22.4e horsepower

Live onward

The ONWARD 6 Passenger Golf Cart is designed to bring families and friends together for unforgettable outdoor experiences. Built with your comfort and safety in mind, this exceptional vehicle features a stable suspension and impressive torque, making driving feel effortless.

request a quote

lifted suspension

HP ELECTRIC

Motor/ Engine: 375 Amp AC Motor Controller

Horsepower: 22.4 hp (16.5 kW) Peak

Batteries: (6) 8-volt

Charger: E.R.I.C. Automatic, 48-volt; UL and CSA listed

Speed Range: 19 mph (30 kph)

HP LITHIUM - ION

Motor/ Engine: 375 Amp AC Motor Controller

Horsepower: 29 hp (21.4 kW) Peak

Batteries: 7.0 kWh Lithium-Ion

Charger: 650W HF Li-Ion (Shelf / onboard); 900W HF Li-Ion (Shelf only)

Speed Range: 19 mph (30 kph)

GAS

Motor/ Engine: 429 cc Kohler, Overhead Valve (OHV) with EFI

Horsepower: 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940

Batteries:12-volt (1)

Charger:N/A

Speed Range: 19 mph (30 kph)

ELECTRIC/ HP/ HP LITHIUM

Steering: SportDrive™ — Self-compensating double reduction helical rack & pinion

Front Suspension: Independent A-arms with Hydraulic shocks

Rear Suspension:
Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers

GAS

hp-ELECTRIC / HP LITHIUM

Brakes: Self-adjusting, rear wheel mechanical drum

Park Brake: Foot actuated, 3-position

GAS

Brakes: Self-adjusting, rear wheel mechanical drum

Park Brake: Foot actuated, 3-position

ELECTRIC/ HP/ HP LITHIUM

Body and Finish: Front: Painted TPO | Rear: Painted Surlyn

Tires: 205 x 55 – 10 Tubeless

LxWxH: 108 x 48 3/4 x 71 inches

Wheelbase: 65 1/2 inches

Ground Clearance: 4 1/2 inches

Tread – Front and Rear: Front/Rear: 36/40 inches

Total Vehicle Weight: 1070 lb (Std Electric/HP) | 784 lb (Std Lithium-Ion) | 794 lb (XR Lithium-Ion)

Frame Type: AlumiCore™ — Ladder-style aluminum box beam
